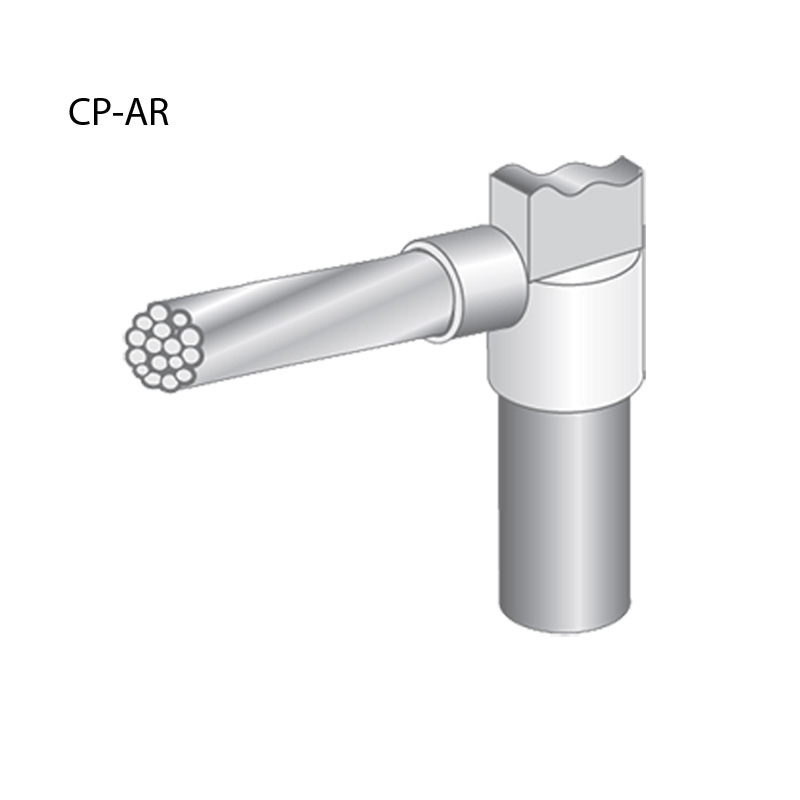

Ligação Cabo/Elétrodo Terra
| CP-AR | CP-T | CP-TS | CP-V | CP-VS | 25 | 35 | 50 | 70 | 95 | 120 | 150 | 185 | 240 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 143 | – | – | 143 | – | C-65 | C-65 | C-90 | C-90 | C-90 | C-90 | C-115 | C-115 | C-150 |
| 146 | – | – | 146 | – | C-65 | C-65 | C-90 | C-90 | C-90 | C-90 | C-115 | C-115 | C-150 |
| 58 | – | – | 58 | – | C-65 | C-65 | C-90 | C-90 | C-90 | C-90 | C-115 | C-115 | C-150 |
| 183 | – | – | 183 | – | C-90 | C-90 | C-90 | C-90 | C-90 | C-90 | C-115 | C-115 | C-150 |
| 34 | – | – | 34 | – | C-90 | C-90 | C-90 | C-90 | C-90 | C-90 | C-115 | C-115 | C-150 |
| – | 143 | – | – | – | C-90 | C-90 | C-90 | C-115 | C-115 | C-150 | C-200 | C-200 | C-250 |
| – | 146 | – | – | – | C-90 | C-90 | C-90 | C-115 | C-115 | C-150 | C-200 | C-200 | C-250 |
| – | 58 | – | – | – | C-90 | C-90 | C-90 | C-115 | C-115 | C-150 | C-200 | C-200 | C-250 |
| – | 183 | – | – | – | C-90 | C-90 | C-115 | C-115 | C-115 | C-150 | C-200 | C-200 | C-250 |
| – | 34 | – | – | – | C-90 | C-90 | C-115 | C-115 | C-115 | C-150 | C-200 | C-200 | C-250 |
| – | – | 143 | – | – | C-90 | C-90 | C-115 | C-115 | C-115 | C-150 | C-150 | C-250 | 2XC-200 |
| – | – | 146 | – | – | C-90 | C-90 | C-115 | C-115 | C-115 | C-150 | C-150 | C-250 | 2XC-200 |
| – | – | 58 | – | – | C-90 | C-90 | C-115 | C-115 | C-115 | C-150 | C-150 | C-250 | 2XC-200 |
| – | – | 183 | – | 143 | C-90 | C-90 | C-115 | C-150 | C-150 | C-200 | C-250 | 2XC-150 | 2XC-250 |
| – | – | 34 | – | 146 | C-90 | C-90 | C-115 | C-150 | C-150 | C-200 | C-250 | 2XC-150 | 2XC-250 |
| – | – | – | – | 58 | C-90 | C-90 | C-115 | C-150 | C-200 | C-200 | C-250 | 2XC-150 | 2XC-200 |
| – | – | – | – | 183 | C-90 | C-90 | C-115 | C-150 | C-200 | C-200 | C-250 | 2XC-150 | 2XC-200 |
| – | – | – | – | 34 | C-90 | C-90 | C-115 | C-150 | C-200 | C-200 | C-250 | 2XC-150 | 2XC-200 |
